Prefabricated Branch XLPE / PVC Insulated Cables 20 x OD Bending Radius

Brand Name : SHANCABLE

Model Number : YDF-YJLV

Certification : CE/KEMA/CCC/TUV

Place of Origin : SHANGHAI CHINA

MOQ : 500m

Price : USD 4.56-8.78/m

Payment Terms : L/C, T/T, L/C, T/T, Western Union

Supply Ability : 100KM/day

Delivery Time : 10-15 days

Packaging Details : wooden drum ,drum size:1.25x1.25x0.75m, 20 ft container can load 12 packages

Color of insulation : Grey ,Black or according to customer's requirment

Bending Radius : 20 xO.D

Nominal Area of conductor : 6mm2 to 1200mm2

Hoisting Tool : Optional

Conductor Type : Stranded Copper conductor(class2)

Standard : IEC 60502-1,IEC60228

Main Market : Asia,Midldle-East,African,

Contact Now

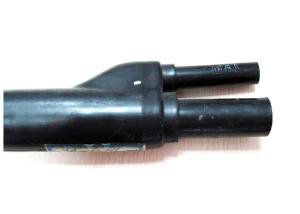

Prefabricated Branch XLPE / PVC Insulated Cables 20 x OD Bending Radius

Prefab branch cable with rated voltage 0.6/1KVis a new Kind of low voltage distribution products. The prefab style can decrease the labor intensity greatly, shorten work time, and reduce cost greatly.

1. Brief introduction

Prefab branch cable is a new kind of low voltage distribution products, the prefab style can decrease the labor intensity greatly, shorten worktime, reduce cost greatly. The products is widely used at mid and high building highway, bridges, channels, high level workshop etc with its super performance.

2. Standards

Our factory has complied with factory standards according to the IEC60502 and JIS376A. The insulation performance is much superior than IEC60502, and the joint is tested according to the standard of GB9732.

3. Type & Name

Type Name
YDF-YJLV Aluminum Conductor XLPE insulated PVC sheathed prefab branch cable
YDF-VLV Aluminum Conductor PVC insulated PVC sheathed prefab branch cable
YDF-ZR-YJLV Aluminum Conductor XLPE insulated PVC sheathed flame resistance prefab branch cable
YDF-ZR-VLV Aluminum Conductor PVC insulated PVC sheathed flame resistance prefab branch cable
YDF-NH-YJLV Aluminum Conductor XLPE insulated PVC sheathed fire resistance prefab branch cable
YDF-NH-VLV Aluminum Conductor PVC insulated PVC sheathed fire resistance prefab branch cable
YDF-WL-YJLE AluminumConductor XLPE insulated polyolefine sheathed halogen free low smoke flame resistance prefab branch cable
YDF-WL-EE Aluminum Conductor polyolefine insulated PVC sheathed halogen free low smoke flame resistance prefab branch cable
YDF-DL-YJLV Aluminum Conductor XLPE insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable
YDF-DL-VLV AluminumConductor PVC insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable

YDF-YJLV 0.6/1KV

Single-core ALU/XLPE/PVC prefabricated branch cables

Nominal area of conductor Shape and structure Diameter Thickness of insulation Thickness of sheath Approx overall diameter Approx weight Max.D.C Resistance of Conductor(20℃)
mm2 mm mm mm mm kg/km Ω /km
10 Circular close stranded wire 3.7 0.7 1.4 9.0 95 3.08
16 4.7 0.7 1.4 9.5 120 1.91
25 5.9 0.9 1.4 11.5 1900 1.20
35 7.0 0.9 1.4 12.0 207.0 0.868
50 8.5 1.0 1.4 14.0 245.0 0.641
70 10.1 1.1 1.4 16.0 336.0 0.443
95 11.7 1.1 1.5 18.0 455.0 0.320
120 13.2 1.2 1.5 20.0 550.0 0.253
150 14.7 1.4 1.6 22.0 650.0 0.206
185 16.4 1.6 1.6 24.0 804.0 0.164
240 18.6 1.7 1.7 27.0 1021.0 0.125
300 20.8 1.8 1.8 30.0 1160.0 0.100
400 24.1 2.0 1.9 34.0 1469.0 0.0778
500 26.9 2.2 2.0 37.0 1829.0 0.0605
630 30.2 2.4 2.2 41.0 2305.0 0.0469
800 34.8 2.6 2.3 46.0 2910.0 0.0367
1000 39.0 2.8 2.4 51.0 3604.0 0.0291

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
